Product information "Sporty Aileron Trainer"

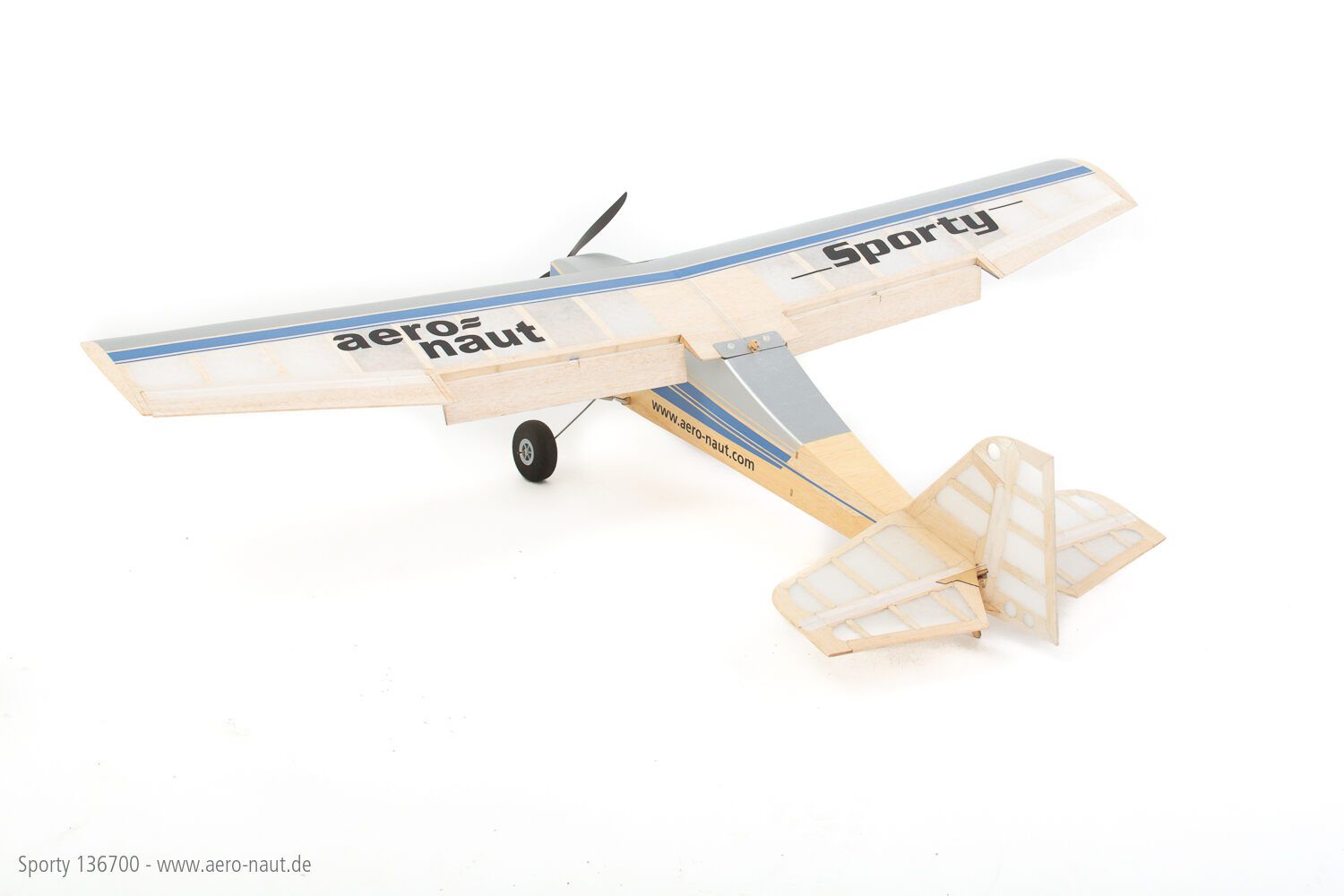

SPORTY is an easy-to-build aileron trainer model with excellent slow-flight characteristics. The wings are easily mounted on a slipway. This maneuverable model is controlled via elevator, ailerons, and rudder. The model can also be equipped with landing flaps.
The wing is constructed in two parts and is plugged together before being mounted on the fuselage.
Due to its low flight speed, Shorty is ideal for learning to fly a powered model. The very detailed assembly instructions, with 3D construction drawings, guide you through the entire construction process. Covering paper is included for covering the wings and tail, and the assembly instructions also include a detailed video tutorial explaining the covering process.
The kit contains: All components made of laser-cut wood, small parts, linkages, covering paper for the tail units, landing gear with wheels, 3D assembly instructions.
A tow release can be installed optionally; the parts for this are already included in the kit. Only an additional AN-12-MGBBA servo is required. With this tow release, smaller glider models, such as the Lilienthal 40, can be towed to their initial altitude. It's an ideal trainer for anyone who wants to learn how to tow larger aircraft.
A suitable drive set is available for the Sporty model under the number 1367/01 (contains motor, controller, propeller, driver, 4 servos, servo extension cable).
If the optional landing flaps are to be installed, two additional servos 7003/74 and one pair of servo extension cables 7457/60 are required.
The ski set Order No. 1366/02 ensures winter snow fun
Span [mm] approx. 1,300
Length [mm] approx. 880
Flying weight [g] from 1,200 g
Area [dm²] approx. 27
Surface load [g/dm²] from approx. 44
RC functions Rudder, elevator, aileron, engine, (flaps and tow release optional)
