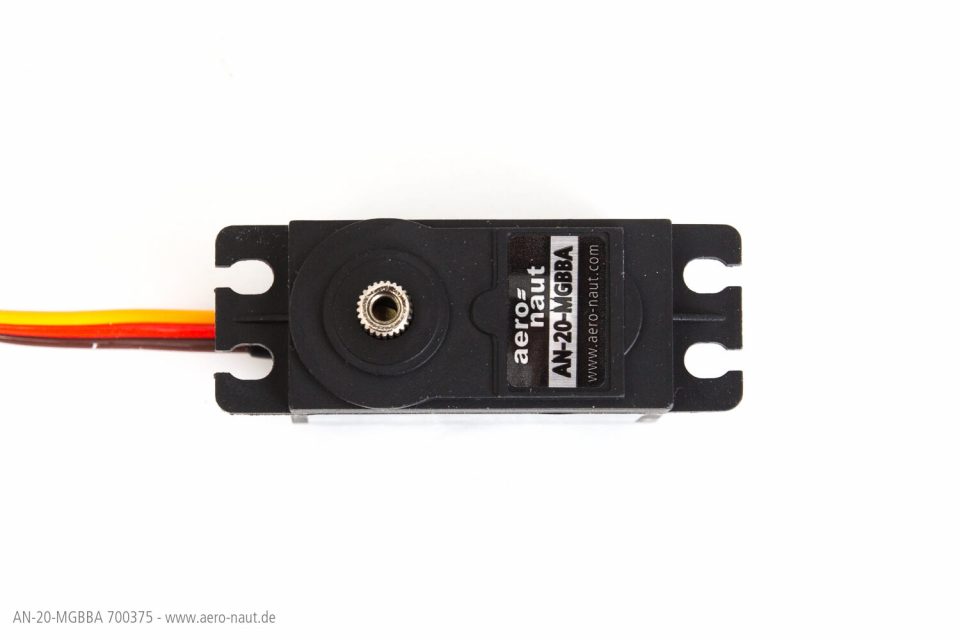

Aero-Naut Servo AN-20-MGBBA 700375

The AN-20-MGBBA is the powerhouse among the aero-naut servos and has a wide range of uses. It can be used in flight models for elevator and rudder and to control nose gears, but is also used in larger ship models and sailing boats. With its 9 kg actuating force and the strong metal gear with double ball bearings, it is the right choice for everything where power is required.

Part No.     7003/75

Voltage     4.8V - 6.0V

Torque @ 4.8V     8.65kg/cm

Torque @ 6.0V             9.35kg/cm

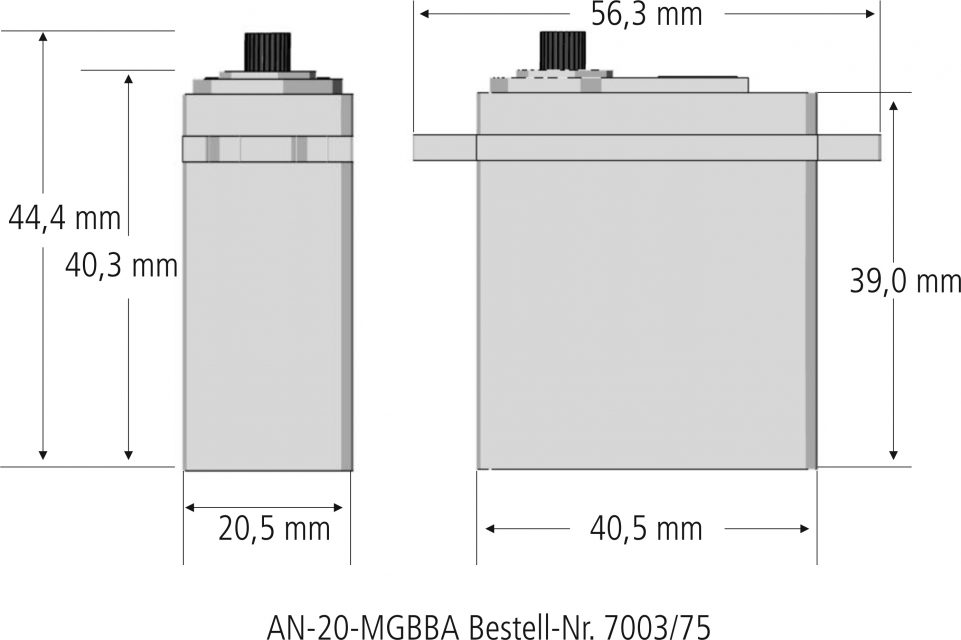

Dimensions     40.5 x 20 x 38mm

Weight     55g

Actuating time @ 4.8V     0.15s / 60°

Actuating Time @ 6.0V     0.13s / 60°

Gear Type     Metal

Operating Mode     Analogue

$49.50
